Residential case study Opa-Locka, Florida

Glorieta Gardens

Eight residential buildings protected and connected through one operating system for video, access, fiber and ongoing support.

Video coverage: 100+ cameras
Property scale: 8 buildings
Vehicle control: 5 access points
Operations: 24/7 monitoring

00Project brief

A property that had to operate as one.

The assignment went beyond adding devices. Innovatech connected perimeter security, resident movement, building communications and the network backbone into infrastructure that the property team could operate and support as a single system.

ObserveIP video, LPR, AI and PTZ

ControlVehicle and pedestrian access

ConnectFiber, racks and apartment WiFi

OperateMonitoring and field support

01System planning

Coverage begins before a camera goes on the wall.

The property was mapped as a connected campus. Camera sight lines, technical rooms, access points and fiber paths were reviewed together so every layer could support the next.

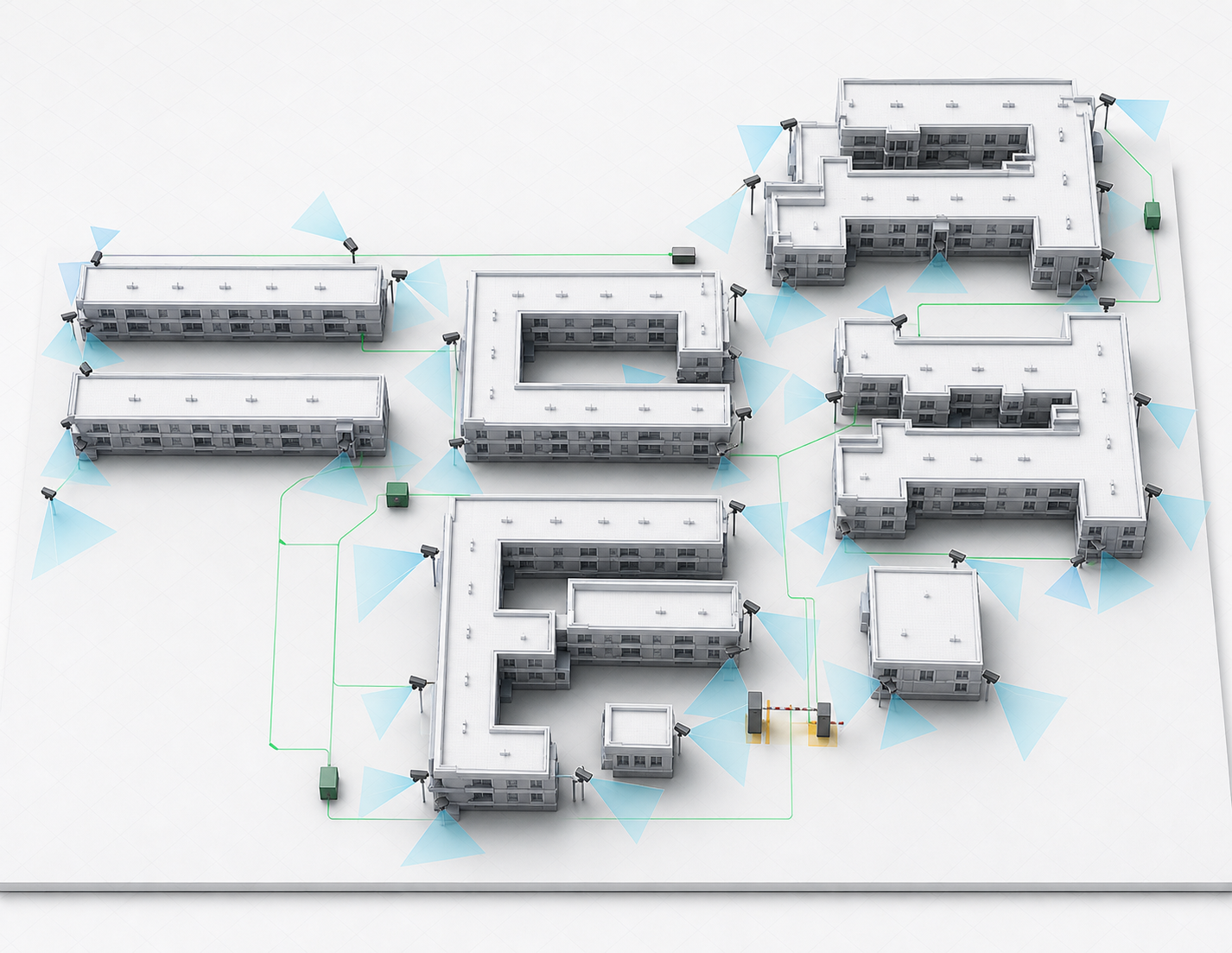

Synthetic three-dimensional planning model of Glorieta Gardens showing buildings, camera fields of view, fiber paths and access points — Property-wide system modelA visual recreation used to understand coverage and pathways without exposing the original layout.

Field plan

Every camera has a job.

Entrances, shared paths, parking areas, building approaches and the playground were treated as one continuous coverage problem rather than isolated camera locations.

Coverage reviewed across the full property

02Observe

A video layer built around the property.

More than one hundred IP cameras cover the community, supported by a dedicated AI license-plate camera and a PTZ for active observation. The result is a clear view of movement from the property edge to the spaces residents use every day.

AI license-plate recognitionPTZ observationProperty-wide coverage

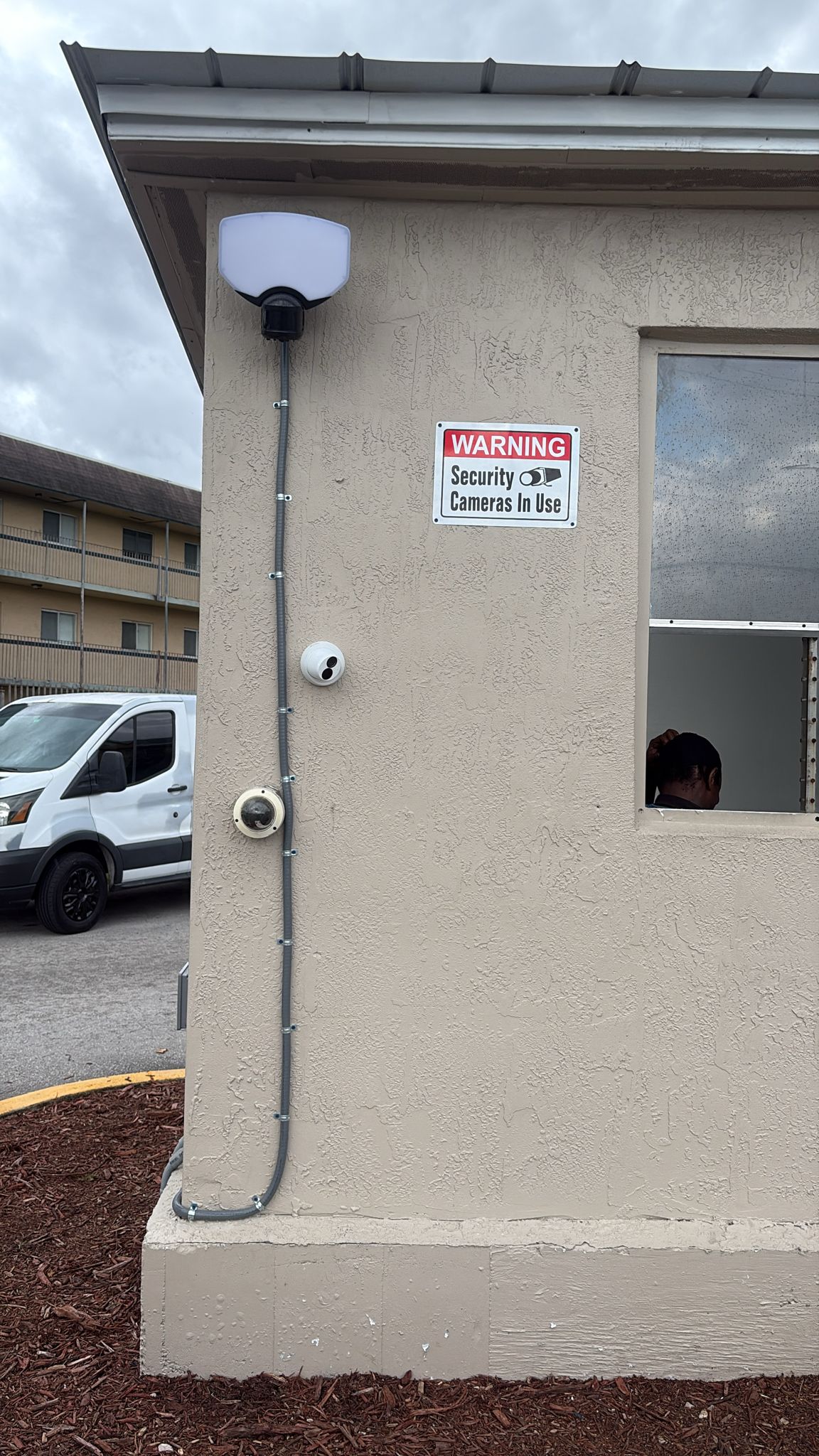

Security kiosk at Glorieta Gardens with multiple exterior camera types and dedicated lighting — Layered perimeter coverageFixed viewpoints and supporting lighting help preserve useful views at critical exterior points.

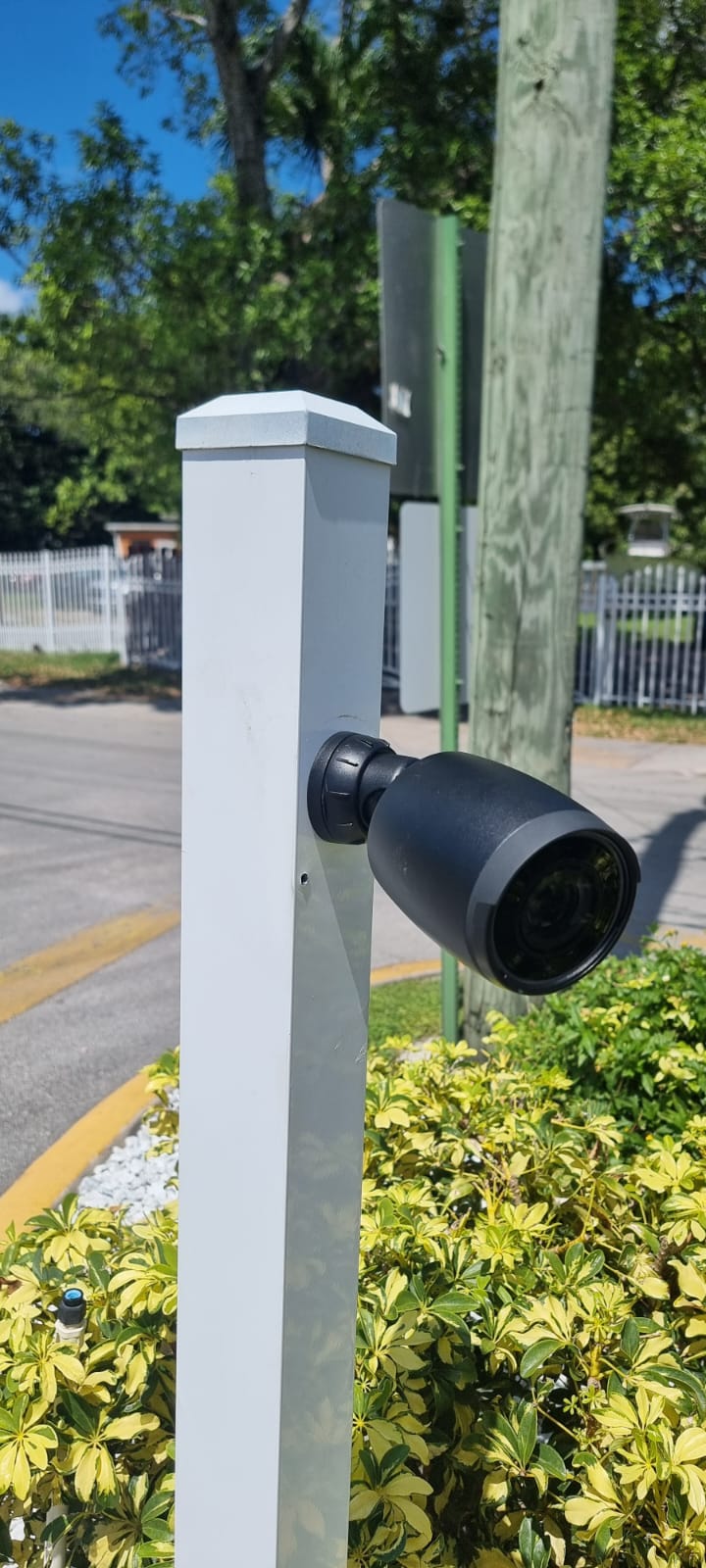

Dedicated exterior AI license-plate camera installed at Glorieta Gardens — Dedicated AI cameraPurpose-positioned at the vehicle lane for a consistent plate-reading angle.

03Control movement

Access that fits the way the community moves.

Residents, visitors, staff and first responders do not use the property in the same way. Each entry point was designed around its real operating context, from vehicle barriers to credentialed doors.

Vehicle access in operationFive controlled vehicle points organize entry and exit without relying on a single gate.

Protected police substationA dedicated numeric lock controls access to the room used by visiting police and security personnel.

Four access patterns

5 vehicle barriers

Separate entry and exit movements across the property.

2 intercom stations

Direct communication at the points where visitors need assistance.

NFC laundry access

Resident credentials control access to shared laundry rooms.

Numeric substation lock

Restricted access for police and on-site security operations.

04Connect

The infrastructure residents rarely see.

Fiber links the buildings while organized technical rooms keep cameras, access and communications serviceable. The same backbone also supports WiFi delivery across the apartments.

A serviceable technical roomEquipment, patching and pathways organized so future work starts with context, not guesswork.

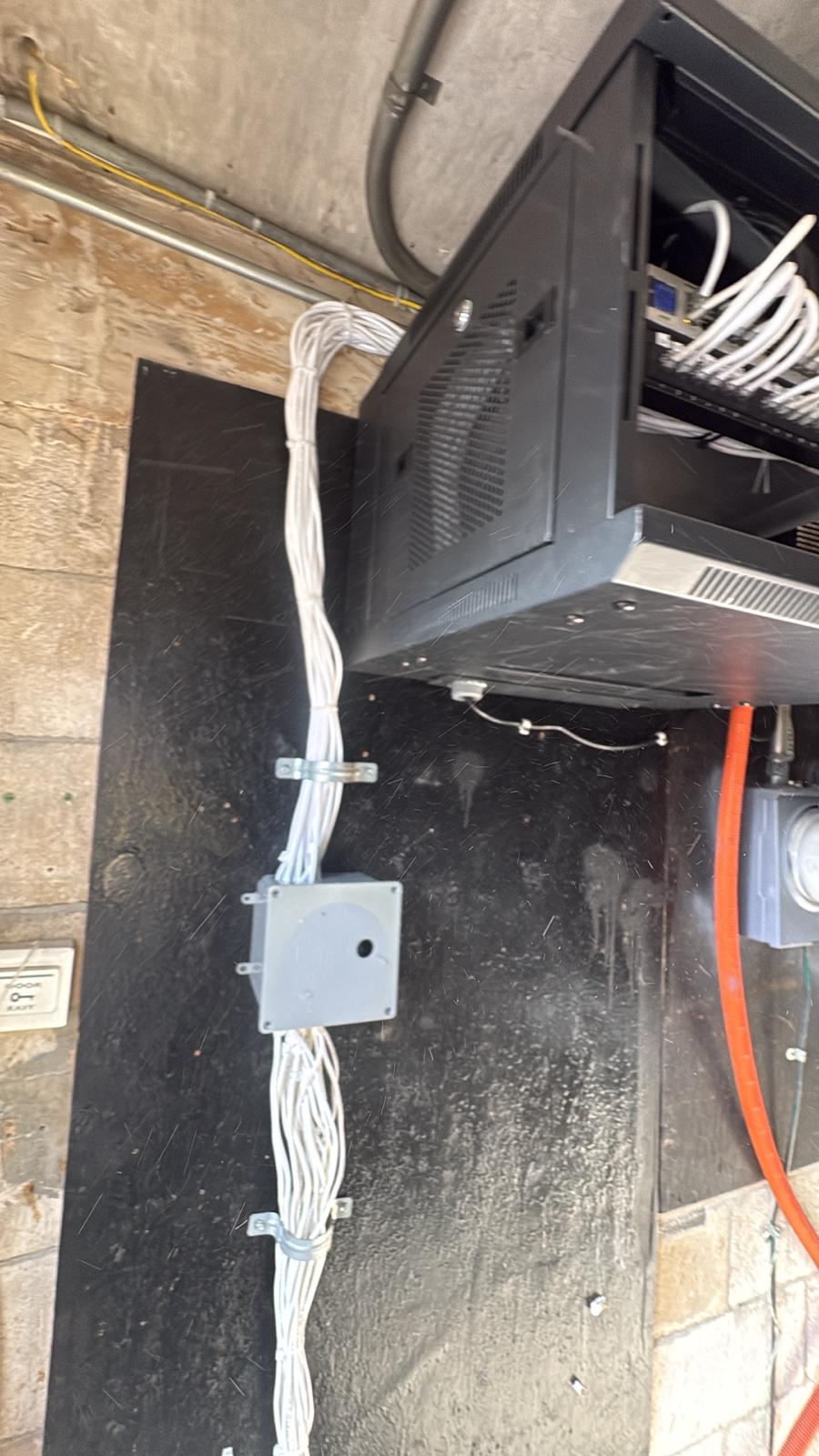

Organized low-voltage cable pathways feeding a network rack — Wire managementClean routing protects the installation and makes maintenance easier to trace.

Environmental supportAir-moving equipment supports the practical needs of the property beyond security and connectivity.

Fiber backbone between buildings

WiFi service for every apartment

Multiple air-moving systems

05Operate

Installed is only the beginning.

Glorieta Gardens is supported as a live property. Video monitoring runs around the clock, field systems remain serviceable and the operation can coordinate with security staff and police when an incident requires attention.

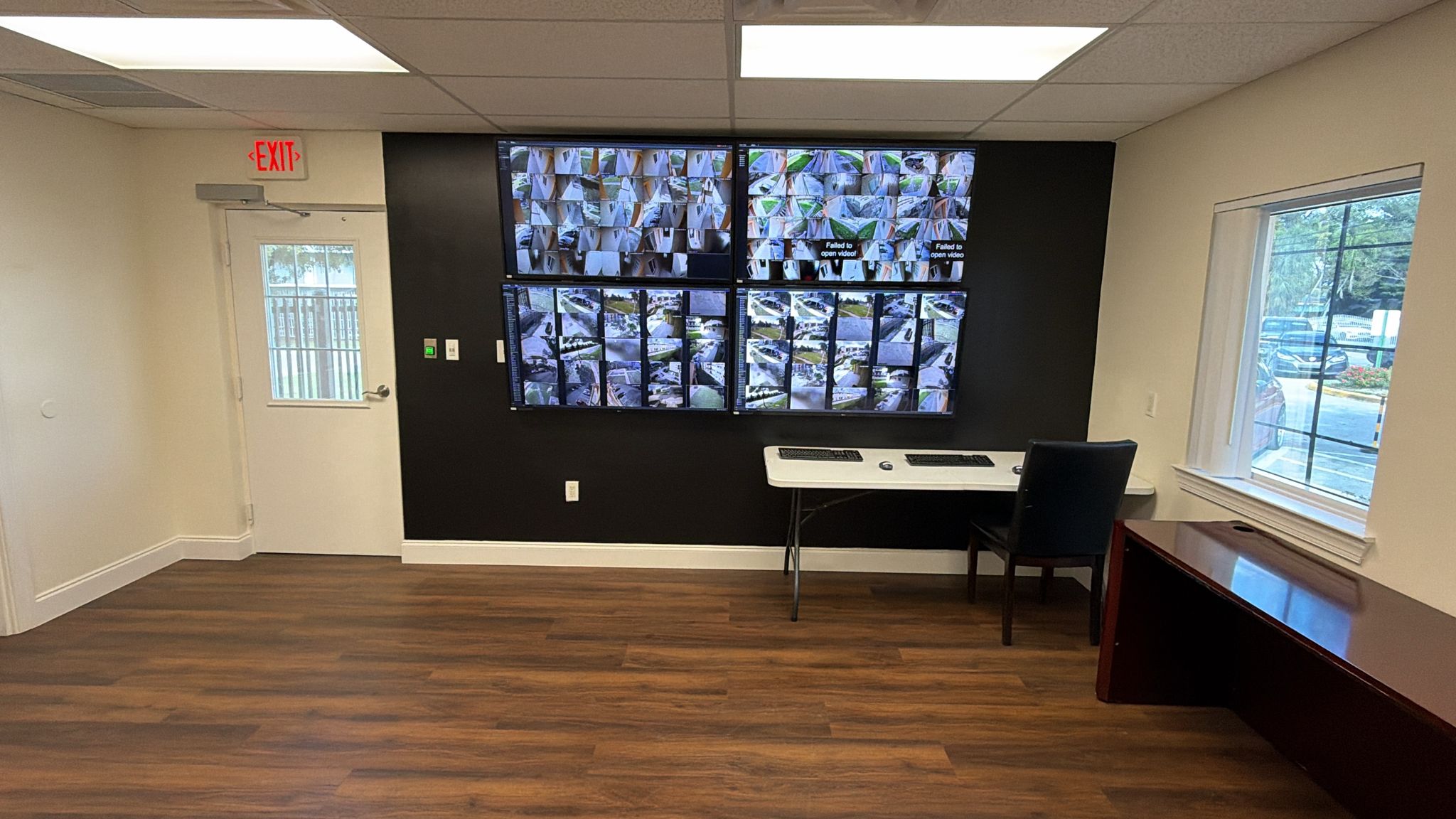

Glorieta Gardens police substation with four wall-mounted security monitoring displays

The system was designed to be watched, maintained and improved over time.

Always on

24/7 video monitoring provides continuous operational awareness.

Coordinated

Property security and police support can work from the same visual context.

Supported

Ongoing service keeps access, cameras and network infrastructure working together.

One property. One accountable team.

Security, access and connectivity designed as infrastructure.
